Usage Patterns

In this section usage patterns and A-Box examples are introduced.

NFDI Resources

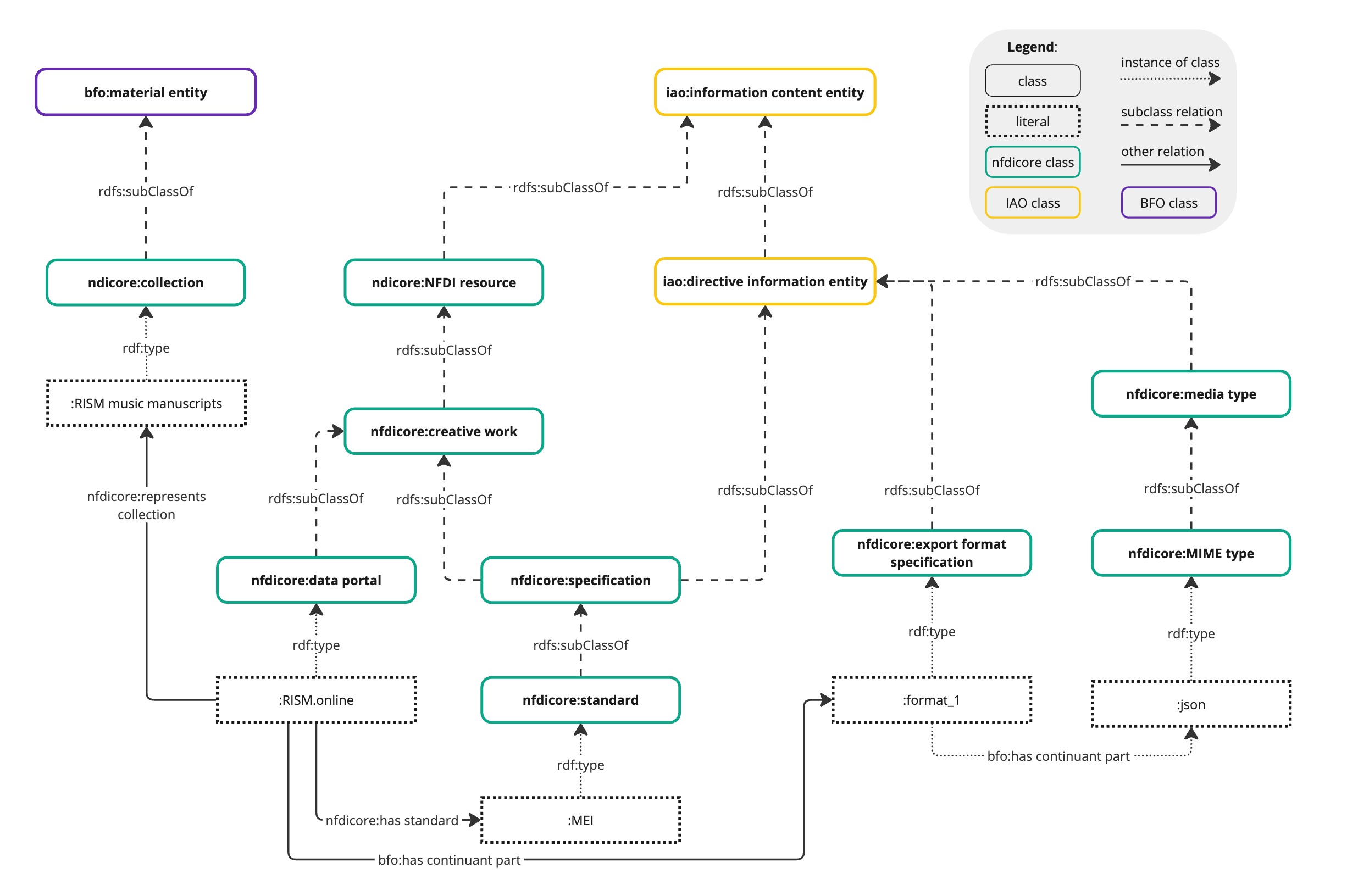

Within NFDIcore, resources are continuants which encompass a wide range of digital creative works, including datasets, collections, and metadata, as well as offered products and services such as data portals, data curation, and data digitization.



stateDiagram

  direction BT

#style definitions
  classDef clazz fill:lightgrey,color:white
  classDef individual font-size:small

#styling of classes

  class bfo_occurrent clazz
  class bfo_entity clazz
  class bfo_continuant clazz

#relations

  bfo_occurrent --> bfo_entity: subClassOf
#  bfo_continuant --> bfo_entity: subClassOf
#  bfo_process --> bfo_occurrent: subClassOf
#  bfo_temporal_region --> bfo_occurrent: subClassOf
#  bfo_one_dimensional --> bfo_temporal_region: subClassOf
#  bfo_two_dimensional --> bfo_temporal_region: subClassOf

stateDiagram
  direction BT
  classDef clazz fill:lightgrey,color:white;

  state "cto:CTO_0001005 (source item)" as CTO_SourceItem
  class CTO_SourceItem clazz
  state "nfdicore:NFDI_0000003 (organization)" as NFDI_organization
  class NFDI_organization clazz
  state "schema:DataFeed" as SCHEMA_DataFeed
  class SCHEMA_DataFeed clazz
  state "cto:CTO_0001024 (incipit)" as CTO_Incipit
  class CTO_Incipit clazz
  state "RISM Online" as org_rism
  state "E5313" as feed_e5313
  state "RISM Resource 201001959" as si_201001959
  state "201001959 incipit 1.1.1" as inc_1_1_1

  state "A''C/'B''D'BA/2G4BA/G-B''D/G4-2-/" as PATTERN_CLASS
  class PATTERN_CLASS
  state "C/" as TIMESIG
  class TIMESIG


  org_rism --> NFDI_organization:a
  si_201001959 --> CTO_SourceItem:a
  inc_1_1_1 --> CTO_Incipit:a


  feed_e5313 --> SCHEMA_DataFeed:a
  si_201001959 --> inc_1_1_1:CTO_has incipit
  si_201001959 --> org_rism: NFDI_publishedBy
  si_201001959 --> feed_e5313:CTO_isReferencedIn
  inc_1_1_1 --> PATTERN_CLASS:CTO_hasPattern
  inc_1_1_1 --> key_G:CTO_hasKey
  inc_1_1_1 --> clef_C1:CTO_hasClef
  inc_1_1_1 --> keysig_xF:CTO_hasKeySignature
  inc_1_1_1 --> TIMESIG:CTO_hasIncipitTimeSignature

  class RISM_201001959
  class RISM_inc_1_1_1
  class RISM-online
  class E5313
  class G
  class C1
  state "xF" as keysig_xF

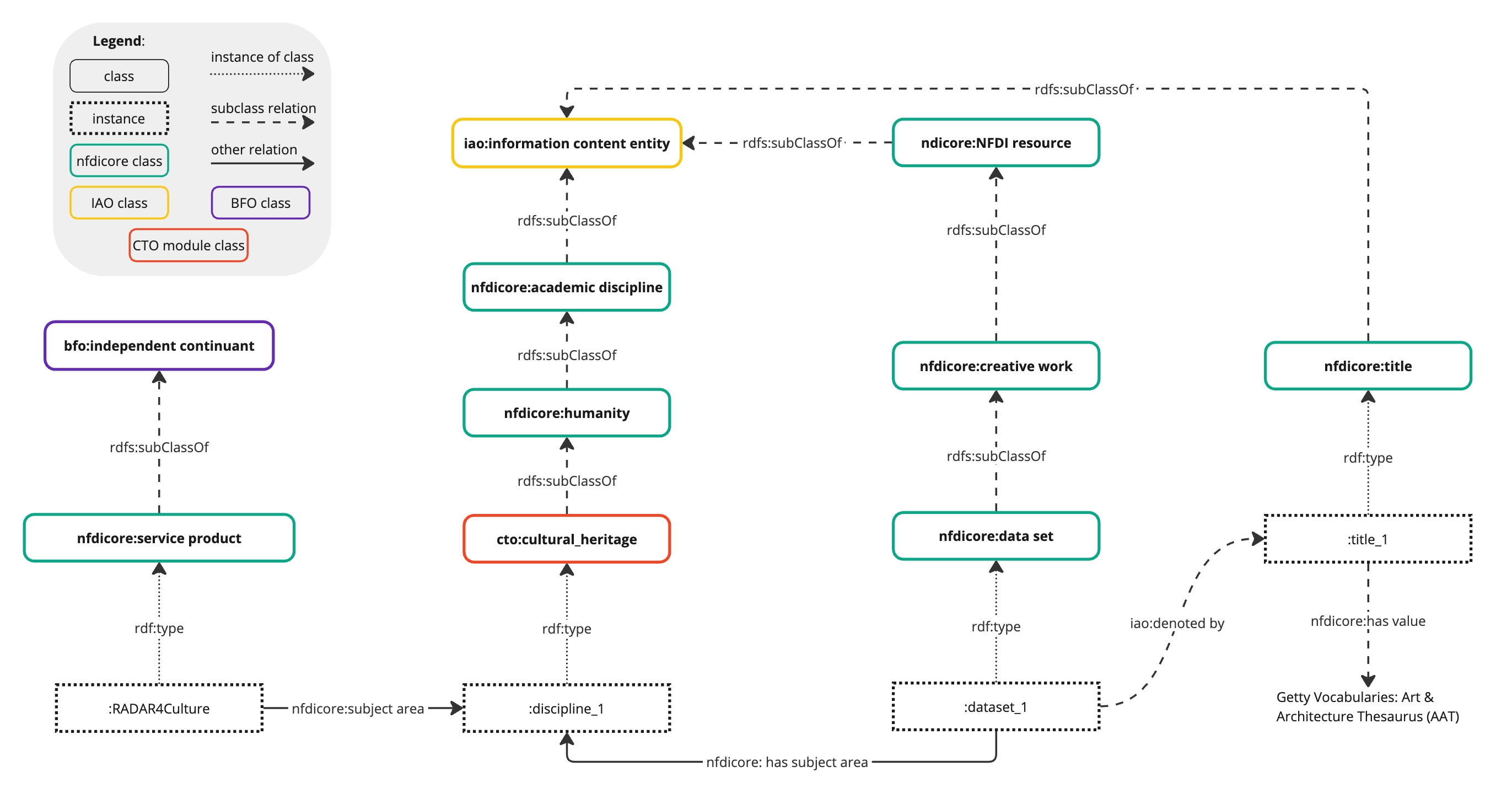

NFDI resources can be associated with academic disciplines (nfdicore:academic discipline, NFDI_0000100) allowing for a more nuanced understanding of their context and relevance.


Agents

Likewise, in NFDIcore, the concept of Agents extends to both organizations and persons, serving as independent continuants within the BFO ontology. Agents are essential for management of research data resources, and include entities such as research institutions, consortia, universities, companies, and individual researchers or data scientists.

Within NFDIcore, agents can be directly linked to resources via different relations; may participate in processes (BFO_0000015) and be associated with diverse roles (BFO_0000023), e.g. nfdicore:publisher role (NFDI_0000193), nfdicore:contributor role (NFDI_0000118), etc. within the processes. Moreover, agents engage in diverse relationships with other agents, e.g. nfdicore:parent organization (NFDI_0000182).

Resources within NFDIcore engage in diverse relationships with agents, facilitated by various properties such as nfdicore:contributor, nfdicore:creator, nfdicore:publisher, and nfdicore:contactPoint. While these properties enable direct connections between agents and resources, they may lack some expressivity. E.g. additional information about the relationship like a temporal context, ordering (e.g. for authors). In scenarios requiring more detailed semantics to describe the relationship between an agent and a resource, the modeling proposed by BFO 2020 with processes and roles can be employed.

Processes

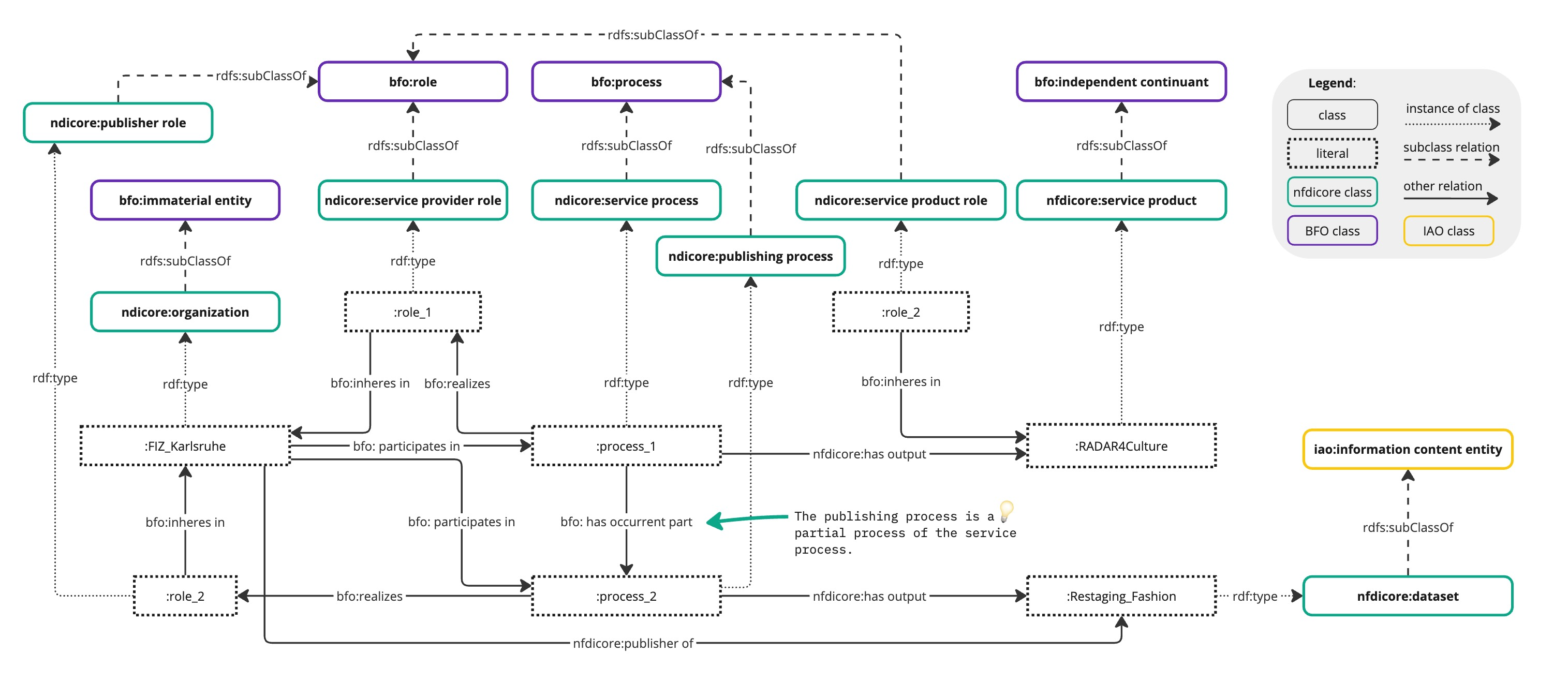

A process (BFO_0000015) can encompass subordinate processes and partial processes. Within NFDIcore, a process often serves to establish connections between agents and information content entities (IAO_0000030), defining the roles (BFO_0000023) of agents with respect to the involved information content entities.


Events and Time

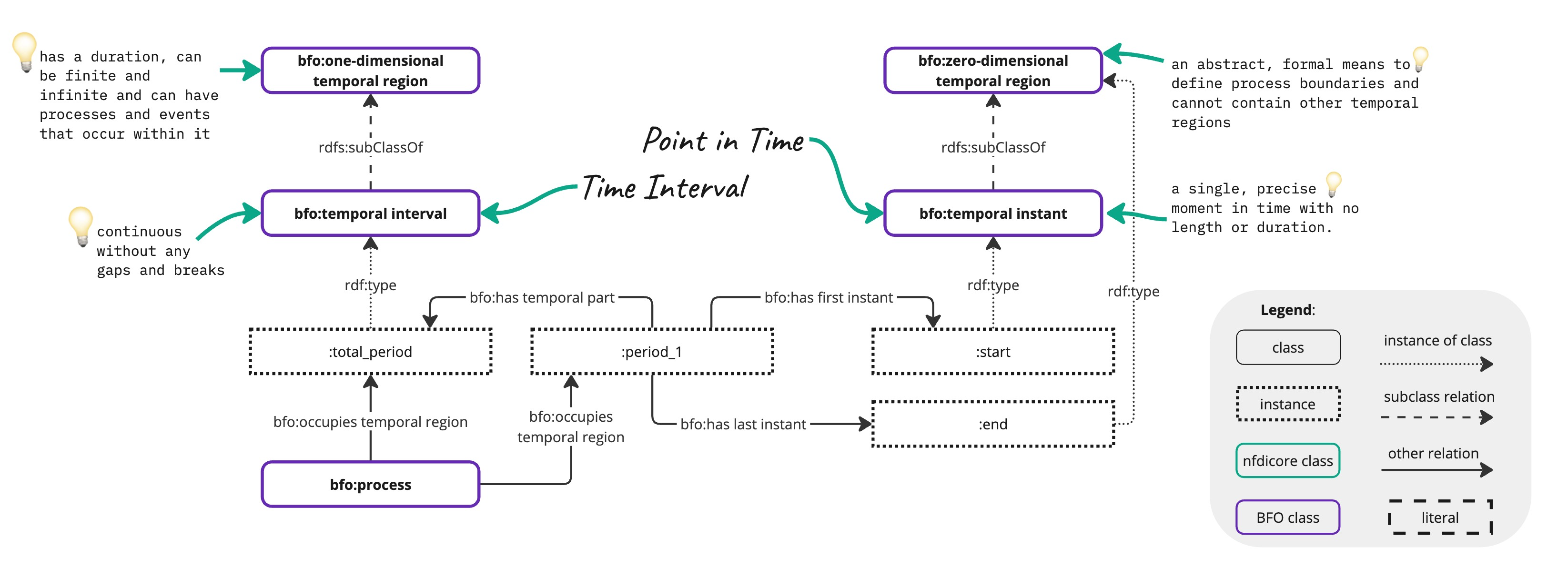

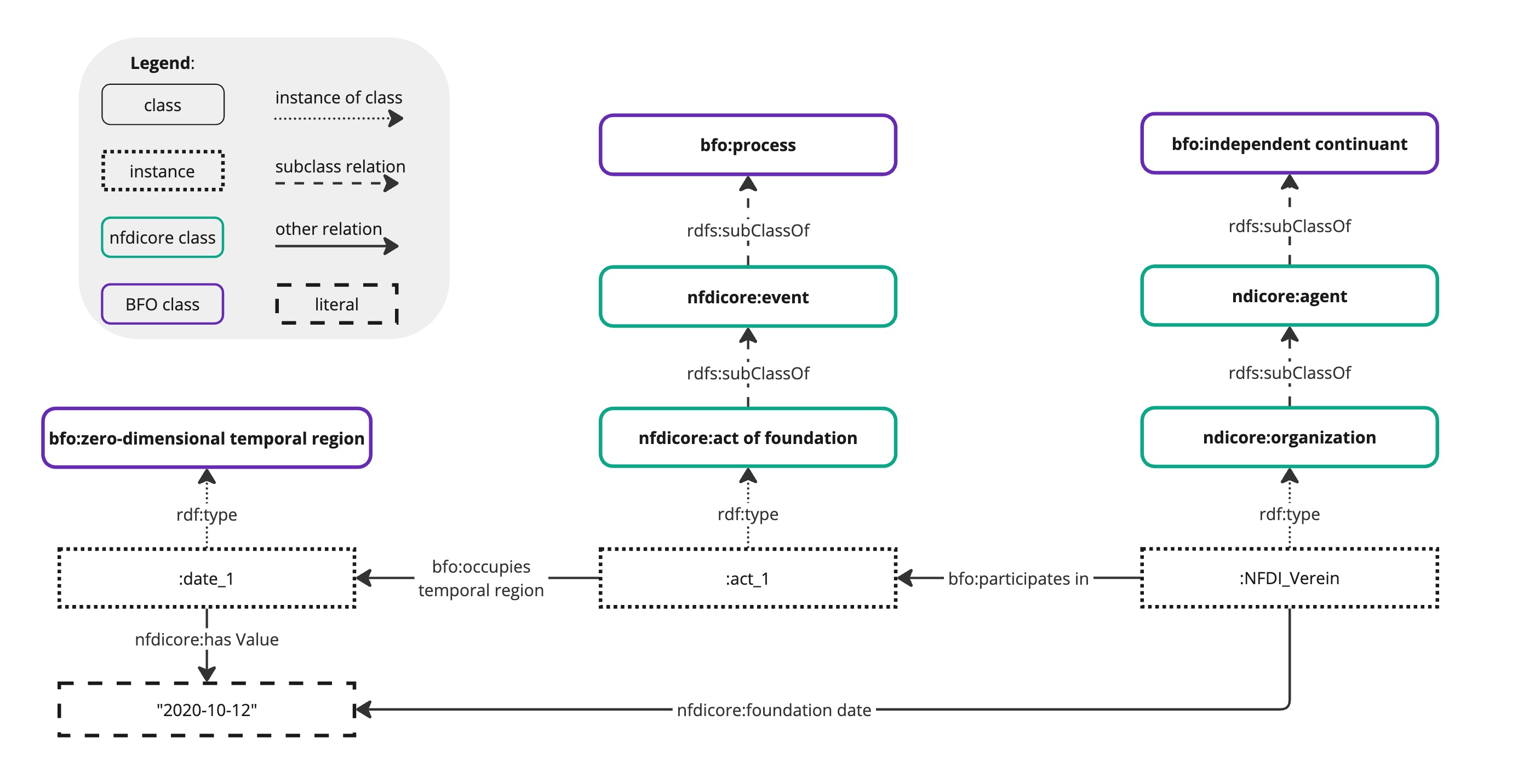

The bfo:temporal region (BFO_0000008) is an occurrent and is used to represent the structure of time. Thereby, the bfo:zero-dimensional temporal region (BFO_0000148) represents a single instant in time, a precise point in time without any duration, e.g. the date when the NFDI Verein was founded (nfdicore:act of foundation, NFDI_0001020). In contrast, the one-dimensional temporal region (BFO_0000038) refers to a time interval which has a duration, can be finite as well as infinite and events can occur within it.


The nfdicore:event (NFDI_0000131) is associated with processes that represent an organized happening that unfolds in time. The nfdicore:event, classified as an occurrent (BFO_0000003), serves as a representation for various happenings such as conferences, and workshops.
